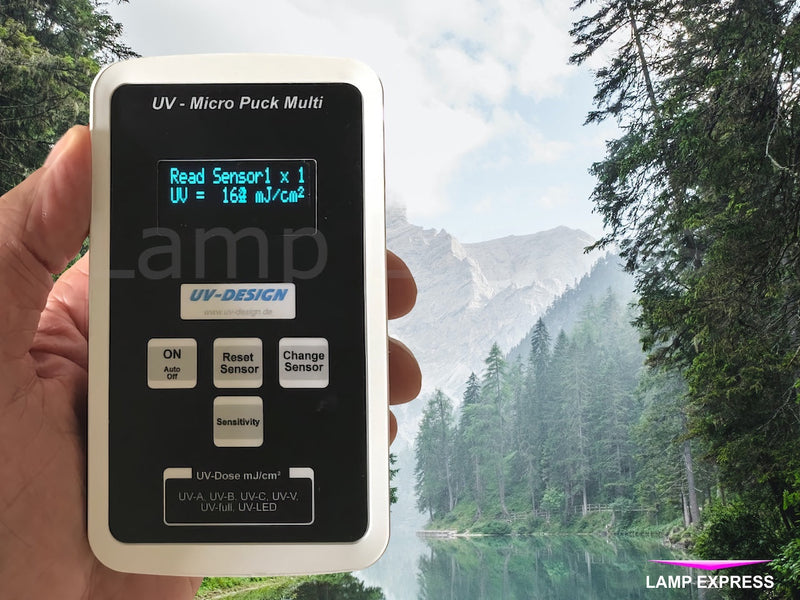

UV-Micro Puck Multi Integrator

UV DesignSKU: 681215

Price:
Sale price$1,695.00

Shipping calculated at checkout

Stock:
in stock

Description

The UV-MICRO PUCK Multi Integrator is a high quality UV-measuring system used to measure the UV-dose in hard to reach areas. The wireless design and the compact form factor of the available sensors makes this task easy.

The unit comes without a sensor. As the unit supports up to eight (8) sensors, you can select the best sensor combination for your application from our sensor page.

Just put the base unit into the cart and the proceed to the sensor page to complete your purchase.

If you need just one spectral range, please look at the UV-Micro Puck unit, which comes with one sensor, for one specific spectral range.

The wireless sensor is placed at the measuring location and will accumulate the received UV radiation. Once the measurement is completed, the sensor is simply plugged into the hand unit to display the UV-dose in mJ/cm2.

The measured value is stored automatically in the hand unit and can be recalled at any time, as long as it is not overwritten by storing a new measuring value.

The sensor internal memory stores previous measurements to allow for additive readings. To reset just press the RESET button, when the sensor is plugged in.

The display range can be changed to read low and high UV-energy values.

Calibration:
In order to keep its full function and precision it is recommended to have re-calibration done once per year. Re-calibration will also be necessary after change of battery. Ongoing, PTB traceable calibration with certificate

Warranty:
Two years from the date of purchase

The UV-MICRO PUCK MULTI measuring system consists of:

  • the hand unit
  • warranty card
  • calibration certificate
  • carrying case

Important Note:
The unit and the sensors creates one calibrated combination. It is not possible to use sensors from another unit or sensors you purchase at a later date.


UV-MICRO PUCK MULTI Integrator

Description Value Unit
Product Type Original UV Design Instrument
UV Range Sensor depending nm
Measuring Range 0 - 5,000 mW/cm2
Recording Cycle unlimited s
Base Accuracy 5 ± %
Display LCD, 2 x 16 digits
Display Range 0 - 2,000 & 0 - 20,000 (x10) mJ/cm2
Power Source 2 x 3.7V LiPo Battery
Power Consumption 20 µA
Battery Life 1,000 charging cycles
Length 130 mm
Height 25 mm
Width 75 mm
Weight 150 grams
Data Sheet issued 4/6/2022
